Easy adaption, maximized productivity

Our accumulators are easily adapted to your production needs. The accumulation capacity and change over speed are adjusted to correspond to the line performance to maximize your productivity.

Upgrading?

Show Hide

Accumulator PLC, Drive & Motor Upgrade

The accumulator is not working because of an obsolete PLC, drive or motor. Don't keep your customers waiting and let your reputation suffer. Have your process requirements changed; do you need more capacity in the equipment?

Description

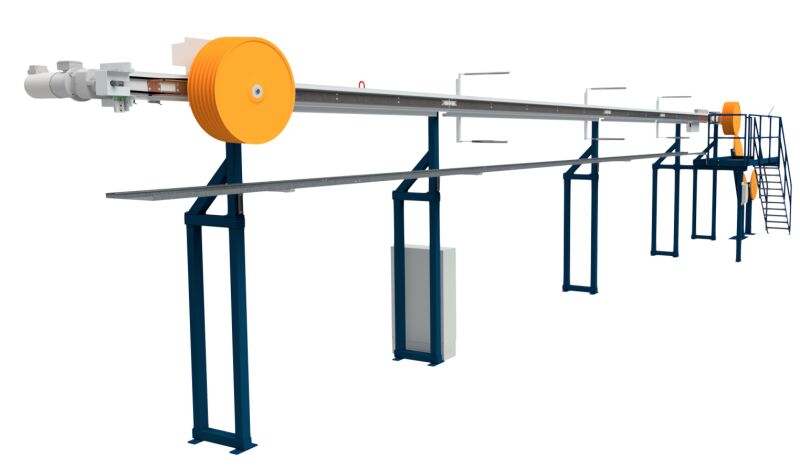

Our Accumulator MHE SBL 800 has a horizontal beam on which the carriage moves. A set of (moving) wheels are fixed to the carriage. The "fixed" set of wheels with a pneumatic cylinder can move about 400 mm along the beam, and work as a dancer to keep the cable tension low. The cable loops between the two sets of wheels are supported by horizontal cable supports. The machine is equipped with a Unidrive AC drive only. The whole control system is built inside the drive.

The carriage is pulled by a chain from an AC motor which is controlled by a frequency converter. Its speed is controlled by the dancer function and the cable tension is set by adjusting the cylinder air pressure. Three different operating modes can be chosen: 1. DANCER MODE 2. TORQUE MODE. The tension can be adjusted from a control panel which can be mounted freely for easy operation.

The accumulator is automated and the carriage can be jogged when threading the cable. The accumulator uses composition wheels which allow low tension in addition to great mechanical strength.

Technical characteristics

Cable diameter, max. 30 mm
Pulling force in the carriage, max. 5600 N

Exact values depend on the assembly.

Options

  • Dancer
  • Cable guiding wheels
  • Raised machine
  • Operator platform
  • Safety fences
