om;d.c;dar;tan;s-s;avi;w/d;cho;jzaThe MXC range of air-cooled extruders ensures high productivity and reliable operation over long periods. The forced feeding design results in a stable quality melt with high output across a wide processing window.

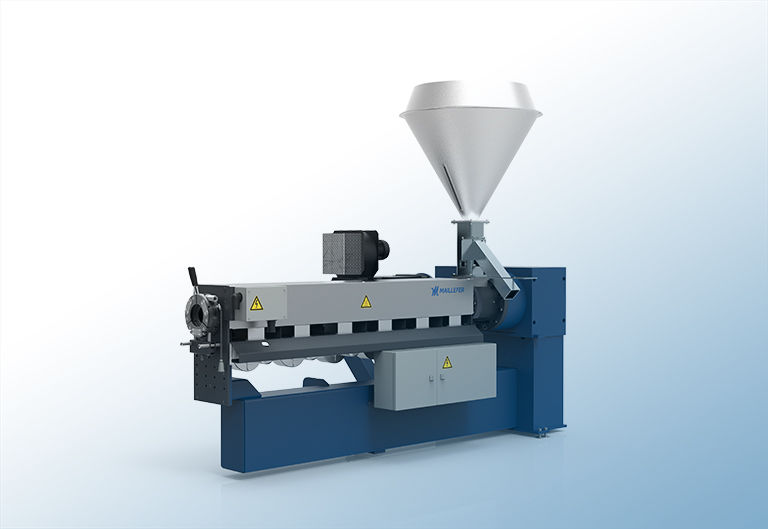

Our Air Cooled Extruder MXC 100-24D is based on the well-known and proven extrusion technology of Maillefer. The extruder suits many standards and applications in cable, tube and conduit manufacturing. A unique screw and barrel combination, perfected through theoretical studies, computer simulations and know-how accumulated over decades, guarantees high, stable and linear output with low melt temperature.
The design of the extruder is compact with all main components on a single base frame. This construction provides a rigid and stable support for barrel and gearbox. Proven design and reliability are the main features of the low noise gearbox. Splash lubrication ensures minimum maintenance requirements.
Extraction of the screw from the barrel can be done by attaching a simple but effective mechanism (supplied with the extruder) to the gearbox. The force necessary to push the screw out of the barrel is provided by the extruder motor itself. No special mechanical skills are required of the operator to carry out this task.
| Screw operation length | 24D |
| Max. screw speed | 96 rpm |
| Screw diameter | 100 mm |
Exact values depend on the assembly.
