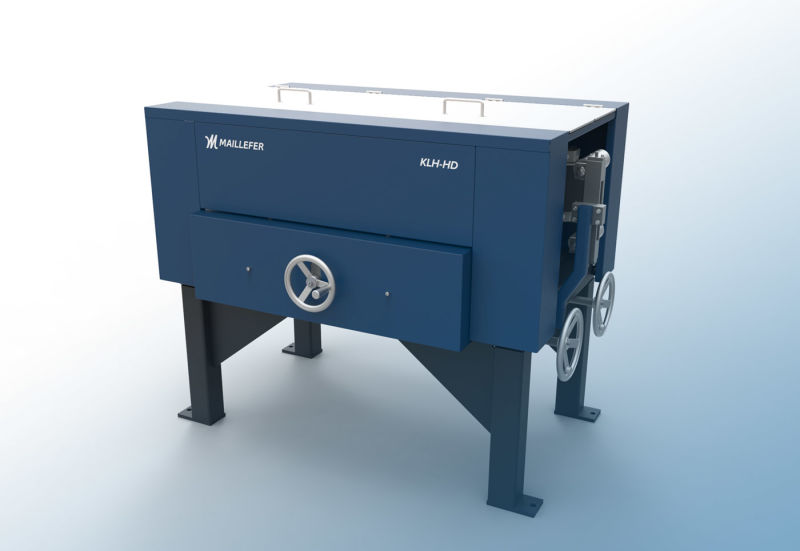

Cable Twister KLH-HD

Nearest Maillefer contacts for USA

Maillefer North America

Pipe & Tube

Phipps Bend Industrial Park<br /> 402 Phipps Bend Road
TN 37873 Surgoinsville

Tel: +1 423 817 2440

Fax: +1 423 212 0131

om;a.c;rus;efe;ill;/ma;jon

Maillefer North America

Wire & Cable

#1 Extrusion Drive
CT 06379 Pawcatuck,

Tel: +1 920-215-6628

om;d.c;dar;tan;s-s;avi;w/d;cho;jza

KN Manufacturing Solutions LLC

Fiber Optic

325 Kentucky Court
GA 30548 Hoschton

Tel: +1 404 202 9655

Cell: +1 404 202 9655

com;ol.;nms;n/k;ine;iem;i.n;kar

Amaral Automation Associates

Wire & Cable

1697 Warwick Ave, Suite D
RI 02889 Warwick

Tel: +1 401 405 0755

om;n.c;tio;oma;aut;ral;ama;es/;sal

Repco Industries LLC

Wire & Cable

13299 W. Essex Ln.
Illinois 60142 Huntley

Tel: +1 847 802 4315

Cell: +1 847 274 9218

com;es.;tri;dus;oin;epc;s/r;otu;nli

Southern Industrial Equipment

Wire & Cable

2708 Cambridge Way
TX 75092 Sherman

Tel: +1 281 844 4260

Fax: +1 903 813 0285

net;ns.;tio;olu;ons;usi;xtr;y/e;tro

Smooth inner semiconductive layer

Moderate rotating is essential part in the HV and EHV cable insulation process and does not damage the sensitive Milliken and taped conductors. In MV cable insulation, the cable twister is used for tightening the conductor, thus improving the inner semiconductive layer smoothness.


Description

Cable Twister KLH-HD rotates the cable around its longitudinal axis. The rotation prevents drooping of the insulation and tightens the stranded conductor. The improved conductor quality prevents the intrusion of the semiconductive material into the conductor and improves the quality of the inner semiconductive layer.

By twisting with the twister device the cable is rotated around its longitudinal axis by taking advantage of the movement of the cable and of the friction between the belts of the device and the cable surface. The symmetrical setting of the tilted belts in a certain angle against the centreline of the cable forces the cable into a rotating movement while it is passing through the centricity device.

Technical characteristics

Cable diameter, max. 140 mm
Set angle of belts, max. ±9.5 °
Weight 1000 kg

Exact values depend on the assembly.
