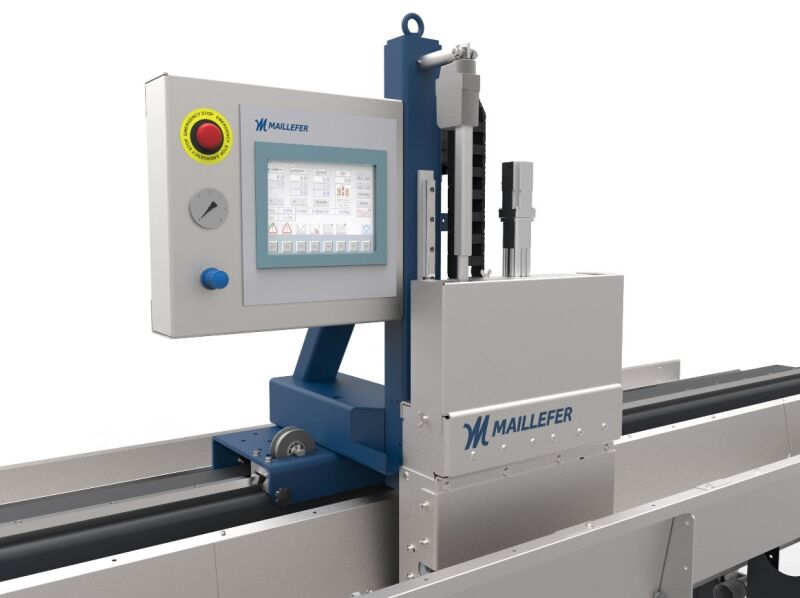

Compression Caterpillar CCA 1000

Nearest Maillefer contacts for USA

KN Manufacturing Solutions LLC

Fiber Optic

5464 Woodrun Ct
GA 30517 Braselton

Tel: +1 678 828 9868

Cell: +1 404 202 9655

com;ol.;nms;n/k;ine;iem;i.n;kar

Maillefer North America

Pipe & Tube

Phipps Bend Industrial Park<br /> 402 Phipps Bend Road
TN 37873 Surgoinsville

Tel: +1 423 817 2440

Fax: +1 423 212 0131

om;a.c;rus;efe;ill;/ma;jon

Maillefer North America

Wire & Cable

#1 Extrusion Drive
CT 06379 Pawcatuck,

Tel: +1 920-215-6628

om;d.c;dar;tan;s-s;avi;w/d;cho;jza

Ultra high speed, excellent EFL control

Want to dare the limits and witness the line speeds of tomorrow?


Description

The Compression Caterpillar CCA 1000 is used as a compression caterpillar in a loose tube buffering process. The loose tube is guided between two rubber belts, the material of which is developed especially to operate in hot water. The speed of the compression caterpillar is faster than the speed of the middle capstan, and thus the buffer tube is compressed while it is cooled down. This ensures a shrinkage-free loose tube. The control of the excess fibre length with dry tubes is also possible with this clinching technology.

Technical characteristics

Cable diameter, max. 6 mm
Cable diameter, min. 1 mm
Pulling force, max. 50 N
Line speed, max. 1000 m/min
Gripping length 295 mm
Pressing force 0 - 50 N
Dimensions L x W x H 904 x 844 x 1250 mm

Exact values depend on the assembly.

Options

  • Compressor with air reservoir
