Perfect distribution, short residence time

Our crossheads have compact design and are very easy to handle and quick to assemble.

Description

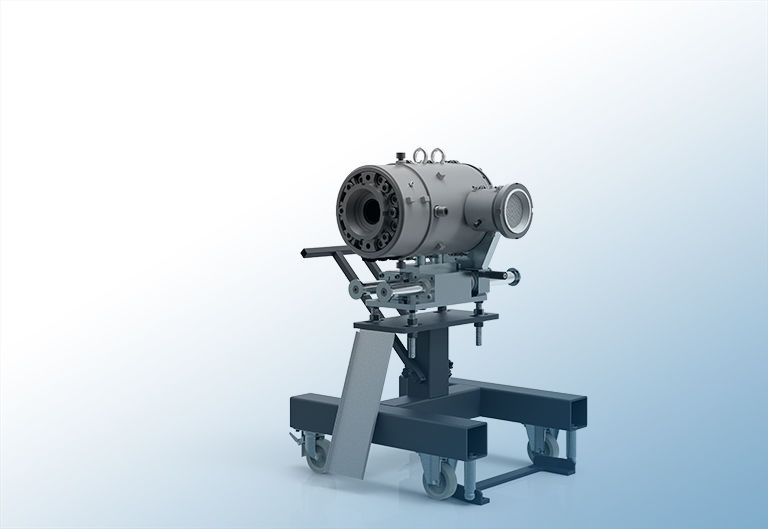

Our Crosshead ECH 115/130 has a manual centring system and a conical shaped distributor.

The high performance and user friendliness of the head are achieved by combining smart design, close tolerances on all parts and unique distributor geometry. The conical distributor is designed in such a way that no special tools are required to install or remove it.

Included in the delivery are the vacuum connection (mainly for those working with tube tooling) and a tool kit for assembly or disassembly of the crosshead. Extrusion tooling of the previous 115/130 type crosshead can be used in the ECH 115/130.

Technical characteristics

Cable diameter, max. 130 mm
Entry diameter, max. 115 mm
Weight 402 kg
No. of temperature controlled zones 2

Exact values depend on the assembly.

Options

  • Version for single layer extrusion only or version for single layer striping or skin extrusion
  • Auxiliary extruder connection with a manually or pneumatically operated bypass
  • Main distributors optimized for PVC/LDPE, HDPE or HFFR
  • Outer layer distributors for striping or skin extrusion
  • Kit for special (non-round) extrusion tooling
  • Crosshead trolley
