Perfect distribution, short residence time

Our crossheads have compact design and are very easy to handle and quick to assemble.

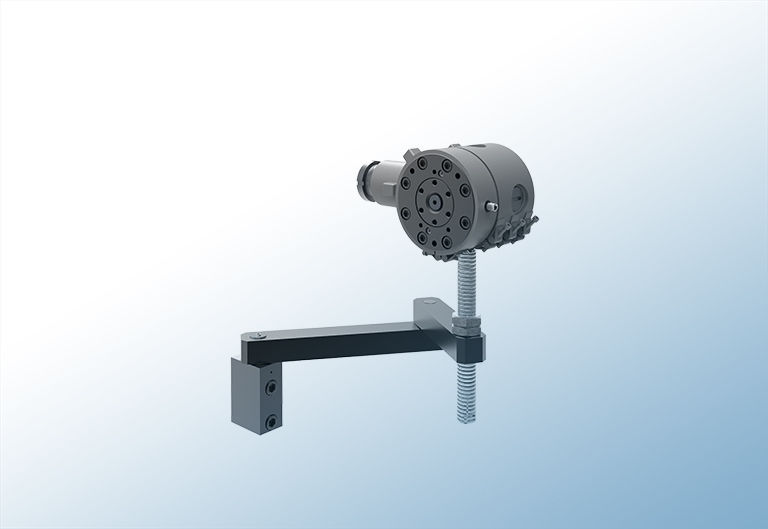

ECH 12-16 3D-web.jpg

Description

Our Crosshead ECH 12/16 main applications include insulation or jacketing of small and medium size conductors or cables.

Excellent concentricity can be achieved with this fixed centred head. The distributor of this head is conical shaped. An additional radial disk type distributor is used in case the head is configured to do also striping or skin extrusion. For single layer extrusion, a dummy distributor replaces the striping or skin extrusion distributor.

The entry for the auxiliary extruder is on top of the head. The high performance of the head is achieved by combining close tolerances on all parts and unique distributor geometry. The conical and radial distributors are designed in such a way that no special tools are required to install or remove them.

The ECH 12/16 can be equipped with extrusion tooling of several other crossheads. Dies from crosshead series 12/14 and 14/20 can be used without any adapter. Adapters are available for dies type 4/6 and wire-guides type 4/6 and 7/12.

Technical characteristics

Cable diameter, max. 16 mm
Entry diameter, max. 12 mm
Weight 25 kg
No. of temperature controlled zones 2

Exact values depend on the assembly.

Options

  • Universal crosshead body suitable for single layer extrusion version as well as single layer, striping or skin extrusion version
  • Main extruder connection with or without a manually or pneumatically operated bypass
  • Auxiliary extruder connection with a manually or pneumatically operated bypass
  • Conical type main distributors optimized for PVC/LDPE, HDPE or HFFR or XLPE
