Perfect distribution, short residence time

Our crossheads have compact design and are very easy to handle and quick to assemble.


Description

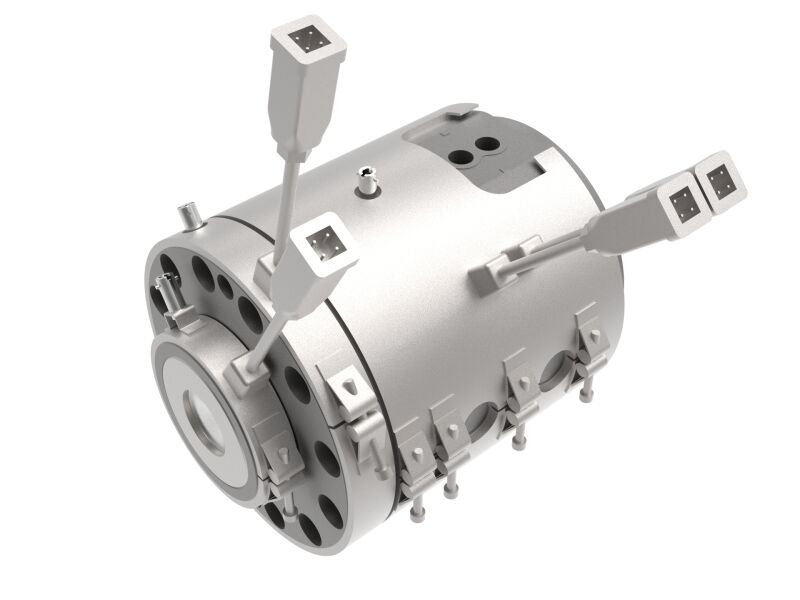

Our Crosshead ECH 12/20 2L + S/ST main applications include insulation and jacketing of photovoltaic, building wires and train cables.

Multi-purpose crosshead body available for single and double extrusion version, and striping or skin extrusion version.

Excellent concentricity can be achieved with this fixed centred head.

The high performance and user friendliness of the head are achieved by combining smart design, close tolerances on all parts and unique distributor geometry.

Technical characteristics

Reel flange diameter (mm) 300-510 or 400-630
Reel overall width (mm) 100-475
Max. full reel weight (kg) 350
Cable Outer Diameter (mm) 0.5-5.0
Tension Range (N) 4-50
Line Speed max. 2500 m/min
Dimensions L x W x H 5000 x 2490 x 2520 mm

Exact values depend on the assembly.
