Perfect distribution, short residence time

Our crossheads have compact design and are very easy to handle and quick to assemble.

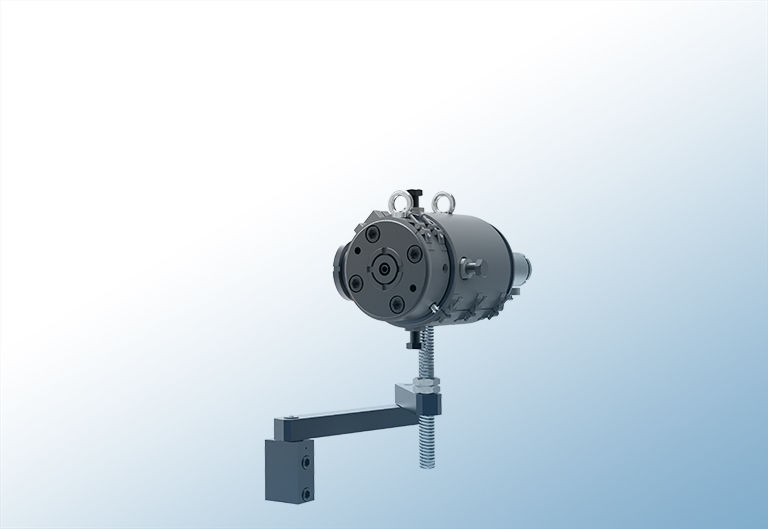

ECH 35-45 3D-web.jpg

Description

Our Crosshead ECH 35/45 has a manual centring system and a conical shaped distributor.

The high performance and user friendliness of the head are achieved by combining smart design, close tolerances on all parts and unique distributor geometry. The conical distributor is designed in such a way that no special tools are required to install or remove it.

Included in the delivery are the vacuum connection (mainly for those working with tube tooling) and a tool kit for assembly or disassembly of the crosshead. Extrusion tooling of the previous 35/45 type crosshead can be used in the ECH 35/45.

Technical characteristics

Cable diameter, max. 45 mm
Entry diameter, max. 35 mm
Weight 96 kg
No. of temperature controlled zones 2

Exact values depend on the assembly.

Options

  • Version for a single layer only or a version for single layer, striping or skin extrusion
  • Main extruder connection with or without a manually or hydraulically operated bypass
  • Intermediate main extruder connection with a hydraulically operated bypass and a manually or hydraulically operated head clamp
  • Auxiliary extruder connection with a manually or pneumatically operated bypass
  • Main distributors optimized for PVC/LDPE, HDPE or HFFR or XLPE
  • Outer layer distributors for striping or skin extrusion
  • Kit for special (not-round) extrusion tooling
