Perfect distribution, short residence time

Our crossheads have compact design and are very easy to handle and quick to assemble.

Description

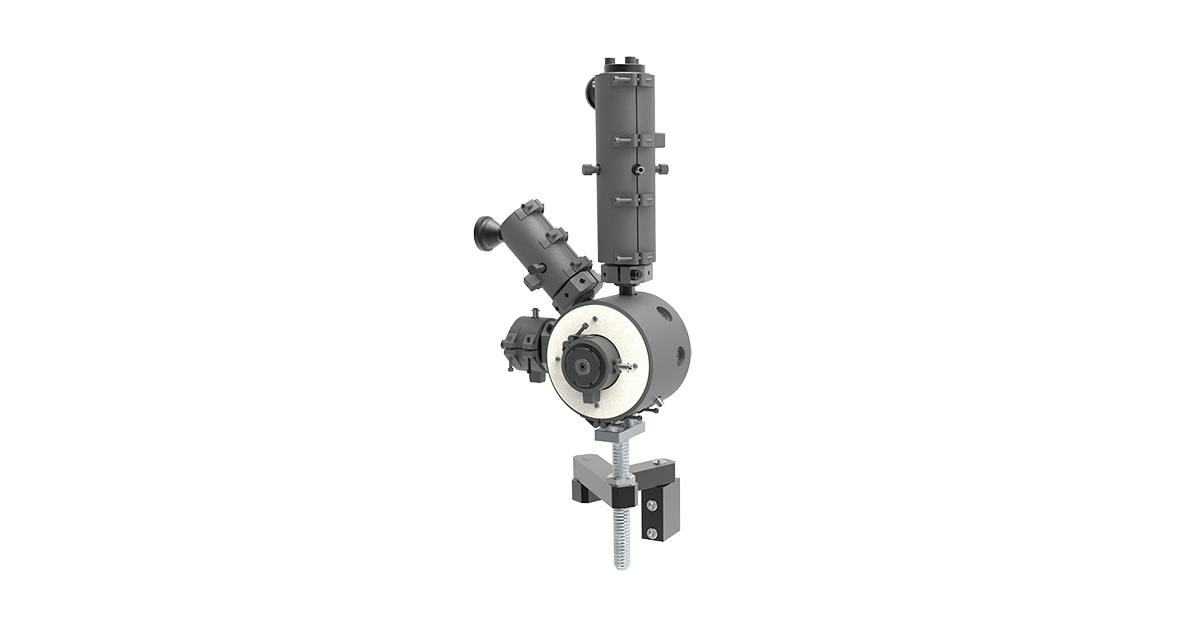

Our Dual Crosshead ECH 80/95 DL has a manual centring system and conical shaped distributors.

The high performance and user friendliness of the head are achieved by combining smart design, close tolerances on all parts and unique distributor geometry. The conical distributors are designed in such a way that no special tools are required to install or remove them. Extrusion tooling of the standard ECH 80/95 crosshead can be used with the ECH 80/95 DL in coextrusion mode.

For the combined bedding and sheathing process, special wire guides, intermediate dies and guides have to be dimentionned for each cable dimension.

Technical characteristics

Cable diameter, max. 95 mm
Entry diameter, max. 80 mm
Weight 285 kg
No. of temperature controlled zones 3

Exact values depend on the assembly.

Options

  • Co-extrusion head for dual layer insulation / jacketing, or filling and jacketing
  • Two-extruder connection with or without a hydraulically operated bypass, at line height
  • Intermediate main extruder connection with a hydraulically operated bypass, and a manually or hydraulically operated head clamp
  • Main distributor optimized for PVC/LDPE, HDPE or HFFR
  • Crosshead trolley
