Flexible, wide diameter range

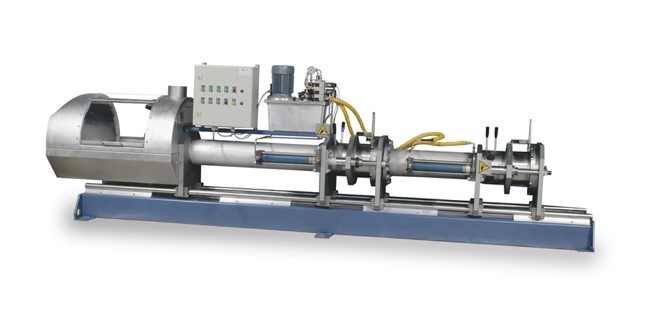

Our End Seal ES 200 SS allows wide cable diameter range adjustment with one rubber sealing package for high and extra high voltage CCV and VCV lines.

ES 75_200 SS_DS.jpg

Upgrading?

Show Hide

End Seal Upgrade

Want to make longer production runs and save nitrogen costs?

Description

Our End Seal ES 200 SS consists of pressurized parts and all needed hydraulic equipment. The end seal is designed according to the pressure vessel code AD-2000 or EN (PED 2014/68/EU).

The integrated pilot seal can be used for sealing the pilot cable during start-up of cable production in order to minimize start-up scrap.

Technical characteristics

Max. cable diameter 200 mm
Permitted movement for heat expansion 700 mm
Opening length in main seal 300 mm
Flange connection (front flange) DN250

Exact values depend on the assembly.

Options

  • Pilot seal
  • Rubber seal sets for main seal housings
  • Rubber seal sets for the pilot seal
  • Cover cabinet for horizontal installation
  • Cover cabinet for vertical installation
  • Cable dryer for 0...160 mm cable diameter
  • Cable dryer with own high pressure blower
