Perfect distribution, short residence time

We master the flow characteristics of our extrusion heads which are designed by our engineers, built in our shop and proven over time.

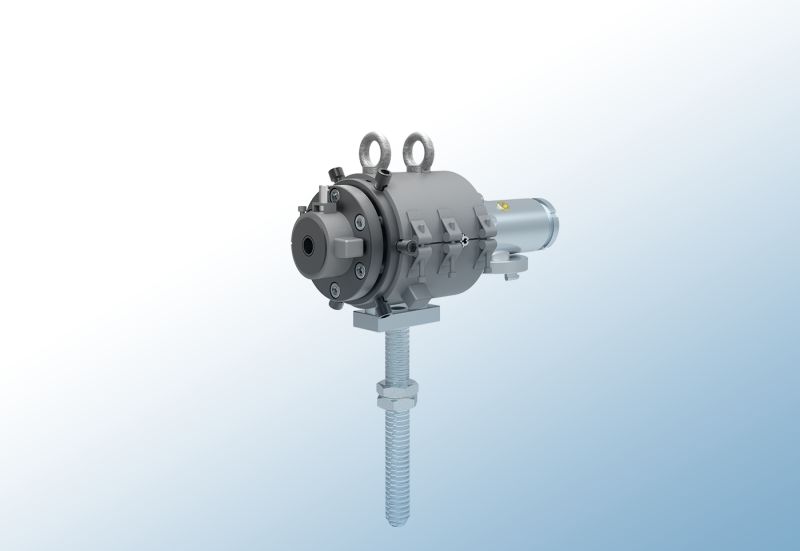

ECH 32-45 SL 3D.png

Description

Our single layer ECH 32/45 is perfect for extrusion of a single layer. Flow distribution is optimized for PEX materials. The dimensioning of the flow channels ensures exact thickness for the pipe's layer.

This transversal head is centered manually.  The extruder connection is available with or without a manual bypass. The head itself is held by a swivel arm fixed to the extruder. This allows easy access for cleaning and tooling changes once the head is disconnected from the extruder.

Four independently controlled heating zones maintain the head's temperature. The total heating capacity is 4.28 kW. The approximate weight is 40 kg.

Technical characteristics

Max. die diameter 45 mm
Number of zones 4
Weight 40 kg

Exact values depend on the assembly.
