Heavy loads, broad reel range

Our floor traversing pay-offs meet the demands of a heavy load carrying capacity and a broad reel range due to extending production lengths. Due to its energy saving braking system, the pay-off will reduce the overall power consumption of the production line. The frame design allows reel loading by an overhead crane.


Upgrading?

Show Hide

Single Pay-off & Take-up Drive, Motor & Gearbox Upgrade

Your single Pay-off and Take-up may be down because of an obsolete drive, motor or gear box. Don't keep your customers waiting and let your reputation suffer. Have your process requirements changed; do you need another type of reel, more pulling force or more speed from the equipment?

Description

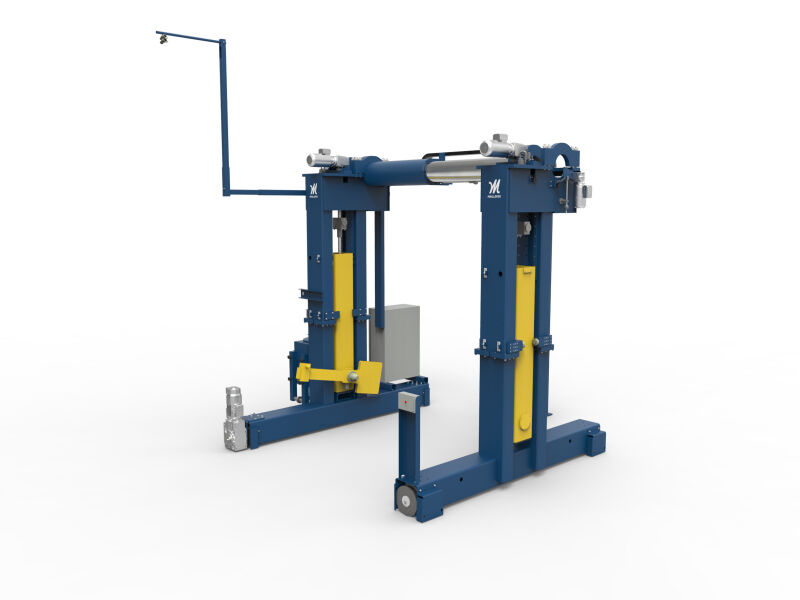

Floor Pay-off FPO 20LV is a portal type floor traversing machine. The machine consists of two vertical stands with pintles. The stands are connected by a horizontal shaft. Thanks to the telescopic construction, the machine width is minimized.

The reel is driven by a carrier arm and its rotation can be either torque or speed controlled.

The multi-lingual control panel has a display for machine status, settings and alarms. Functions such as reel rotation, traversing and pintle movements are controlled from the control panel.

Technical characteristics

Reel weight, max. 20 000 kg
Reel flange diameter 1600 - 3600 mm
Reel width 1130 - 2240 mm
Cable diameter, max. 160 mm
Reel rotation speed, max. 100 rpm

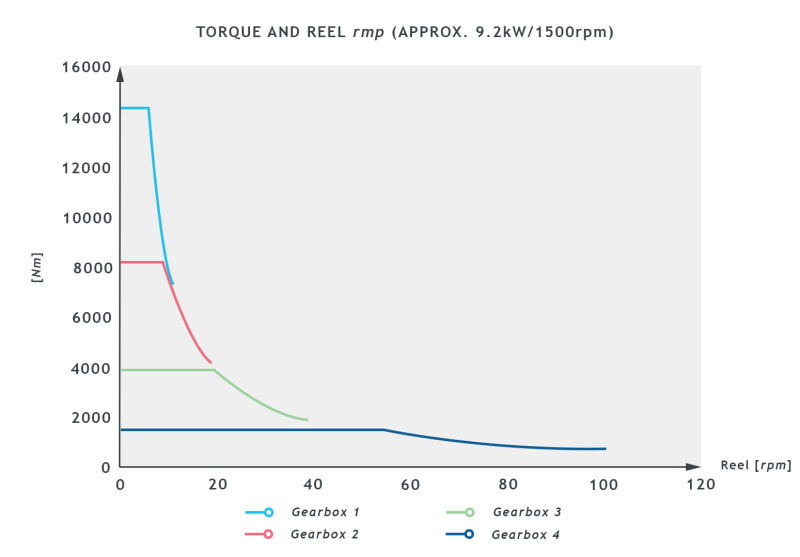

Torque, max. 14 400 Nm
Dimensions L x W x H 4680 x 3810 x 4190 mm

Exact values depend on the assembly.
