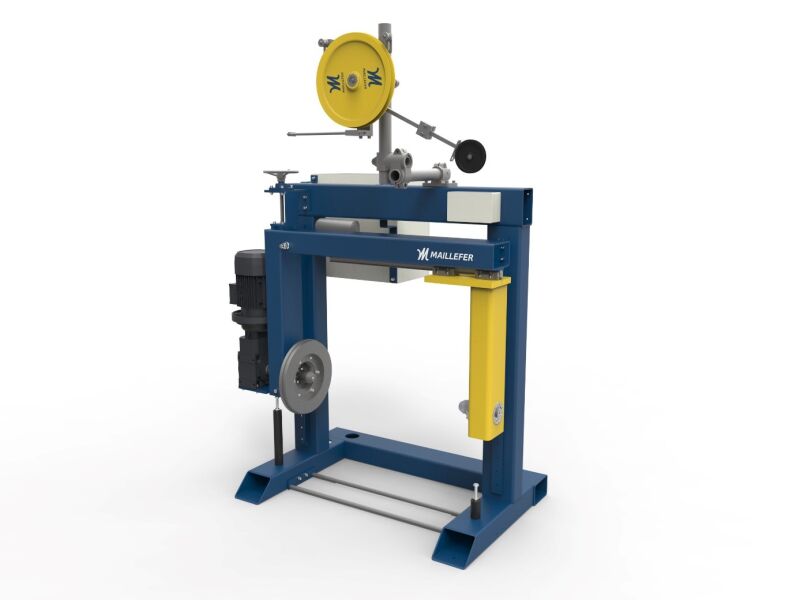

Loose Tube Pay-off PM 1000

Nearest Maillefer contacts for USA

KN Manufacturing Solutions LLC

Fiber Optic

5464 Woodrun Ct
GA 30517 Braselton

Tel: +1 678 828 9868

Cell: +1 404 202 9655

com;ol.;nms;n/k;ine;iem;i.n;kar

Maillefer North America

Pipe & Tube

Phipps Bend Industrial Park<br /> 402 Phipps Bend Road
TN 37873 Surgoinsville

Tel: +1 423 817 2440

Fax: +1 423 212 0131

om;a.c;rus;efe;ill;/ma;jon

Maillefer North America

Wire & Cable

#1 Extrusion Drive
CT 06379 Pawcatuck,

Tel: +1 920-215-6628

om;d.c;dar;tan;s-s;avi;w/d;cho;jza

Reliable and versatile

The Uncomplicated construction makes our pay-off PM 1000 a reliable unit for many different purposes in fiber optic cable lines. It is at its best as a loose tube pay-off in SZ stranding or jacketing lines.


Description

Loose Tube Pay-off PM 1000 is designed for precise unwinding of buffered optical fibers, especially in a stranding process. The equipment is designed for simple and easy operation, a reliable and trouble-free lifetime and an easy integration to existing production lines.

Technical characteristics

Reel weight, max. 400 kg
Reel diameter 400 - 1000 mm
Reel width 200 - 750 mm
Production speed, max. 250 m/min
Weight 375 kg
Reel rotation speed, max. 480 rpm

Exact values depend on the assembly.

Options

  • Dancer, tension range 2Ð5 N
  • Pneumatic Dancer, tension range 2Ð10 N
