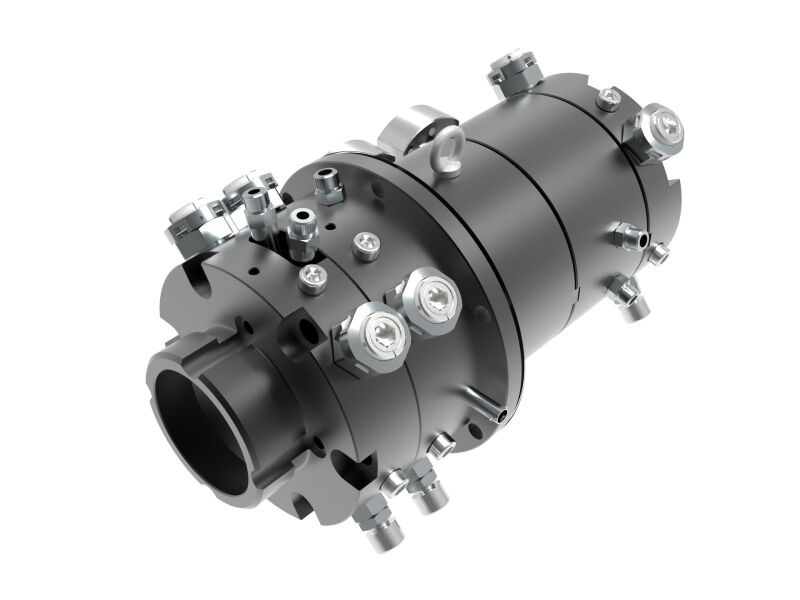

Single Crosshead for two layer extrusion of LV and MV rubber cables.


Description

The dimensioning of the flow channels ensures exact thickness of each layer. The centring can be adjusted with four centring screws in each layer. The gap between the inner layer tip and the die can be longitudinally adjusted. This feature improves the extrusion of various rubber materials regardless of different production speeds. An independently controlled fluid circulation unit is used for temperature control of the crosshead.

In addition to dual layer extrusion, the head can be used for single layer or striping extrusion. The material flow from an auxiliary extruder is added to the main layer through a striping distributor. For single layer extrusion, a dummy distributor replaces the distributor for outer layer or stripe extrusion.

The delivery includes a basic crosshead for rubber materials.

Technical characteristics

Cable diameter 30 mm
Conductor diameter 15 mm
Weight 40 kg
No. of temperature controlled zones 3
Heating of crosshead body with oil or water

Exact values depend on the assembly.

Options

  • Single extrusion
  • Colour stripe parts
