Accurate stabilizing of tube dimensions

Stabalize finished tube size through stable vacuum and optimum water temperature.

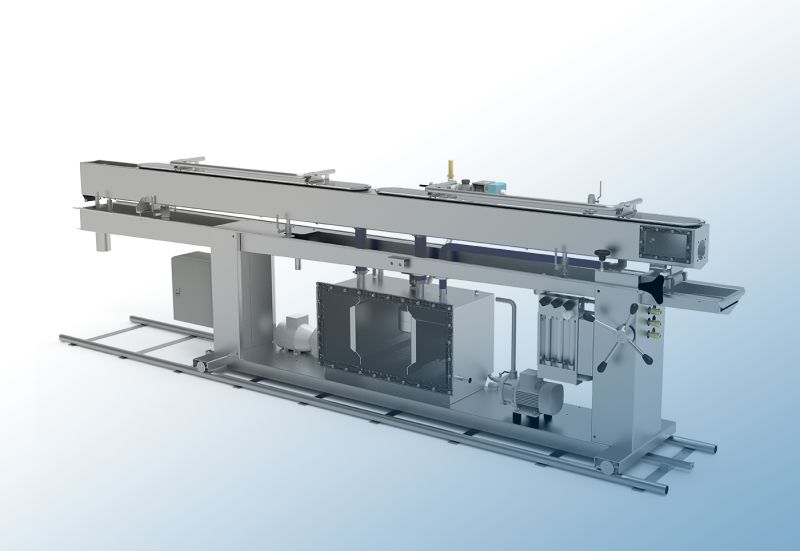

CBC32 3d.png

Description

This CBC 32 trough is specially designed a wide range of tube types. It is available in a 4 m and 6 m versions. A low vacuum model is made especially for medical tube. Adjustable air vacuum enables high stability and accuracy of tube dimensions. The tube is calibrated and cooled through water immersion. An optional thermostatic valve is available for maintaining optimum water temperature. The whole trough, frame included, is made of stainless steel. The complete trough unit is movable longitudinally on rails for free access to the extrusion tooling and calibrator. The calibrator itself is centered manually along dual axes.

Technical characteristics

Tube diameter range up to 32 mm
Vacuum range -50 to -500 mbar (-5 to -100 mbar for medical)
Vacuum length 3500 to 5500 mm

Exact values depend on the assembly.

Options

  • Long length version
  • Low vacuum model for medical applications
