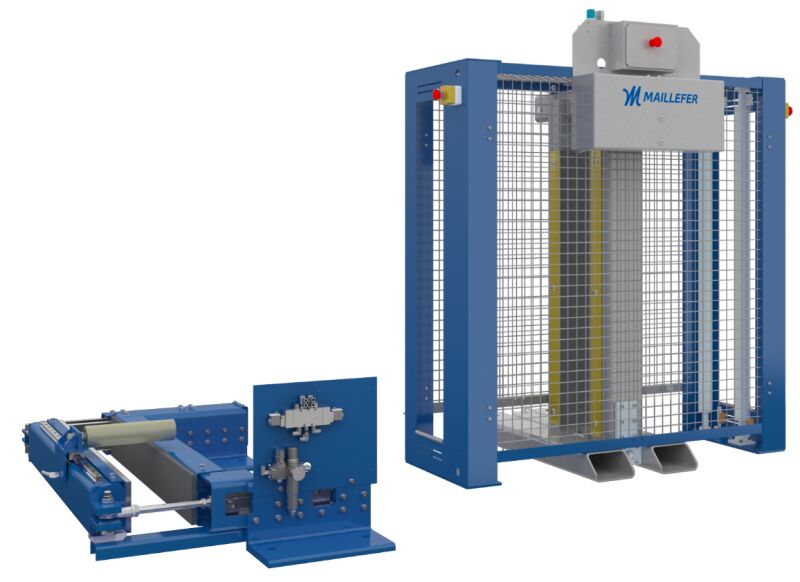

Vertical Cable Clamp KS 160

Nearest Maillefer contacts for USA

KN Manufacturing Solutions LLC

Fiber Optic

5464 Woodrun Ct
GA 30517 Braselton

Tel: +1 678 828 9868

Cell: +1 404 202 9655

com;ol.;nms;n/k;ine;iem;i.n;kar

Maillefer North America

Pipe & Tube

Phipps Bend Industrial Park<br /> 402 Phipps Bend Road
TN 37873 Surgoinsville

Tel: +1 423 817 2440

Fax: +1 423 212 0131

om;a.c;rus;efe;ill;/ma;jon

Maillefer North America

Wire & Cable

#1 Extrusion Drive
CT 06379 Pawcatuck,

Tel: +1 920-215-6628

om;d.c;dar;tan;s-s;avi;w/d;cho;jza

Continuous production, minimized down time

Our cable clamp KS 160 is used in medium, high and extra high voltage cable production.


Description

Our accumulators are equipped with pneumatically operated clamping devices. For example, when a pay-off is placed before the accumulator, the clamp holds the incoming cable end during reel change in a pay-off. Meanwhile, the accumulator is emptied for maintaining continuous production.

Our Vertical Cable Clamp KS 160 enables vertical clamping of the cable inside the free hanging cable loop. The clamping point in vertical direction can vary between 200 - 1200 mm from floor level. This reduces the distance between the pay-off and the inlet of the accumulator, because there are no other supporting points between the inlet point and the winder. The clamp can operate inside the range of hanging cable loop that is needed by the dancer.

The clamp consists of a vertical fixed beam and a pneumatically movable clamping beam. Both beams are equipped with exchangeable rubber surfaces to ensure adequate braking friction. The clamping gap is surrounded with fences to protect the operator and outsiders. The conductor inlet is equipped with vertical guide rollers.

Technical characteristics

Cable diameter, max. 160 mm
Clamping force, max. 5000 N

Exact values depend on the assembly.

Options

  • Traverse control device
