High output, low melt temperature

Our Water Cooled Extruder NXW 200 ensures a high productivity and a reliable operation in long runs. An accurate temperature control and screw design ensure a stable and high quality output.


Upgrading?

Show Hide

Extruder Drive & Motor Upgrade

Has your extruder come to a halt because of an obsolete drive or motor? Don't keep your customers waiting and let your reputation suffer. Have your process requirements changed; do you process different materials which require different performance?

Extruder Screw & Breaker Plate Upgrade

Want to optimize the output for process demand and improve the process performance of your semicon and insulation extruders?

Description

The extruder is based on the well-known and proven extrusion technology of Maillefer. A unique screw and barrel combination, perfected through theoretical studies, computer simulations and know-how accumulated over decades, guarantees a high, stable and linear output with a low melt temperature.

It is made for processing thermally sensitive polymers and elastomers at low temperatures. Typical materials are semiconductive compounds for power cables.

The design of the extruder is compact with all main components on a single base frame. The compact extruder takes a minimum factory space. High quality proven components give a long lifetime with a minimum need for maintenance.

The temperature is controlled precisely with efficient heating and cooling. The temperature is measured close to the inside surface of the barrel. This allows a fast response to any change in the process conditions.

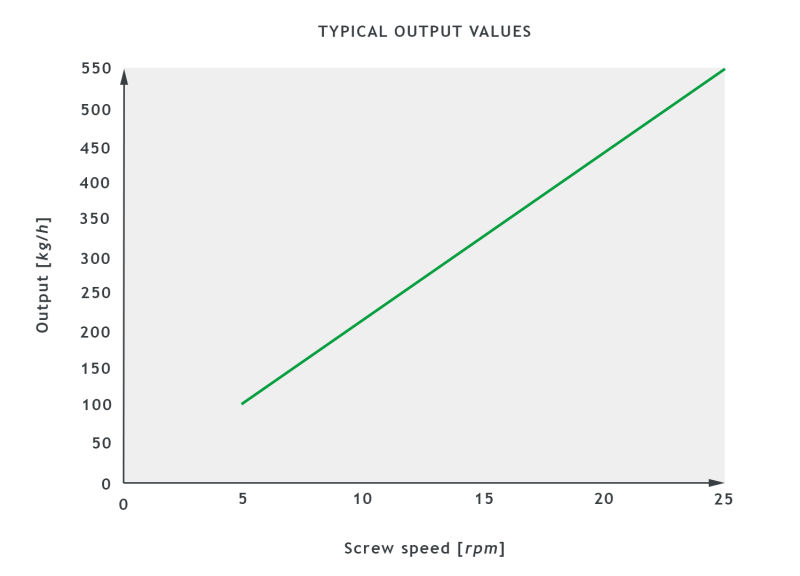

Technical characteristics

Screw diameter 200 mm
Screw operation length 24 x D
Screw speed, max. 25 rpm

Exact values depend on the assembly.

Options

  • Screw for insulation XLPE
  • Screw for rubber
  • Semiautomatic clamp
  • Various hoppers for MV and HV cable production
