Quick Conductor Splicing Value Package for HV/EHV CV Lines

Our Quick Conductor Splicing Value Package allows quick conductor splicing for compact round stranded medium voltage (MV) conductors and high voltage (HV) Milliken conductors up to 3000 mm².

Would you like to have faster and more reliable conductor splicing in the XLPE insulation process

Quick conductor splicing in just 1 - 2 minutes

With our Quick Conductor Splicing Value Package there is no need to slow down the line for reel change. Splicing can be done during the pay-off reel change. In addition there is no need for an accumulator if Milliken conductors are used, and absolutely no line stops will occur due to joint breaks.

What you get

Quick and reliable conductor splicing during pay-off reel change

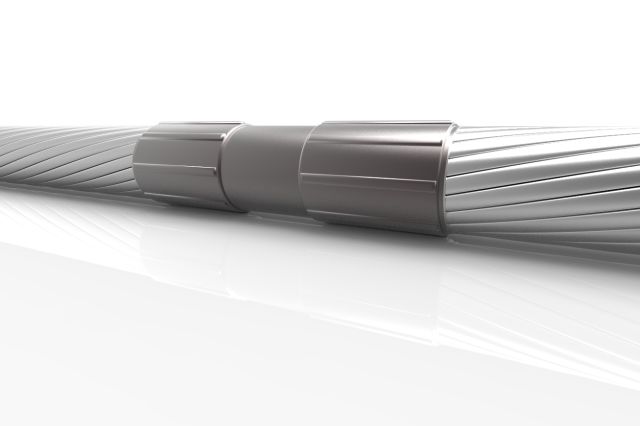

  • Splicing know-how and drawings for precise specially designed conductor splicing sleeves

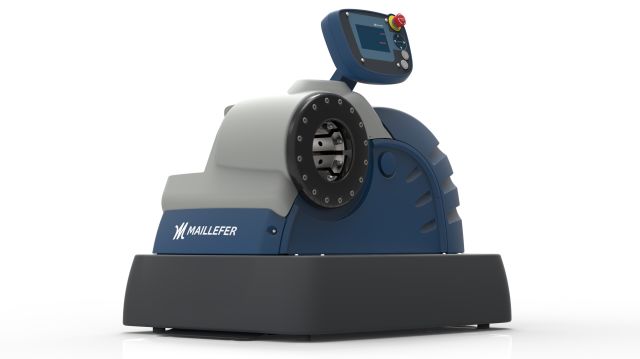

  • A movable hydraulic crimping machine

New lines compatible with Quick Conductor Splicing Value Package for HV/EHV CV Lines
