Easy start-up, reliable production

Our automatic dual take-ups are known for high reel change-over reliability in any application at top line speeds. The dual take-ups are designed to work independently from line controls, therefore providing an easy adaptation and a fast plug & play installation to any line.


Upgrading?

Show Hide

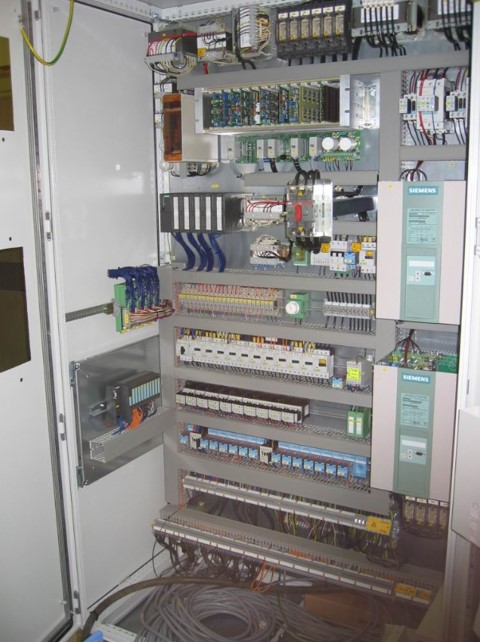

Dual Take-up PLC, Drive & Motor Upgrade

Your dual Take-up may be down because of an obsolete drive or motor. Don't keep your customers waiting and let your reputation suffer. Have your process requirements changed; do you need another type of reel or another type of reel handling?

Description

Our Automatic Dual Take-up EKP 1000K is designed to serve versatile applications in fibre optic cable extrusion lines. The down-time and maintenance need have been minimized through careful choice of components and use of up-to-date technology.

Self diagnostics of the take-up enables quick troubleshooting. Easy access to service points together with overall ergonomics and safety features offer the best working conditions for the operator.

The machine is designed to work independently from line controls, therefore providing easy adaptation to any line. A higher automation level of the line can be reached by integrating it in the line control by signals. To guarantee fast start-up, the take-up is delivered with tested interconnection cables. It goes through thorough testing with wire in full speed. Also with customer reels, if available six weeks prior to shipment.

Technical characteristics

Reel flange diameter 356 - 1000 mm
Reel overall width 300 - 750 mm
Reel weight, max. 600 kg
Cable diameter, max. 8 mm
Reel rotation speed, max. 800 rpm
Line speed Max. 1000m/min
Tension range 3 - 30 N
Dimensions L x W x H 3540 x 2920 x 2280

Exact values depend on the assembly.

Options

  • Parallel I/O line interface
  • Ultralight dancer 0.5 - 4 N
  • Encoder for excess length measurement
  • Profibus line interface
  • Static electricity remover
  • Additional reel fitting parts
