om;d.c;dar;tan;s-s;avi;w/d;cho;jzaOur belt caterpillars ensure the stability of line speed and are highly reliable in long runs as well as with high pulling forces. The stable line speed minimizes cable diameter variations.

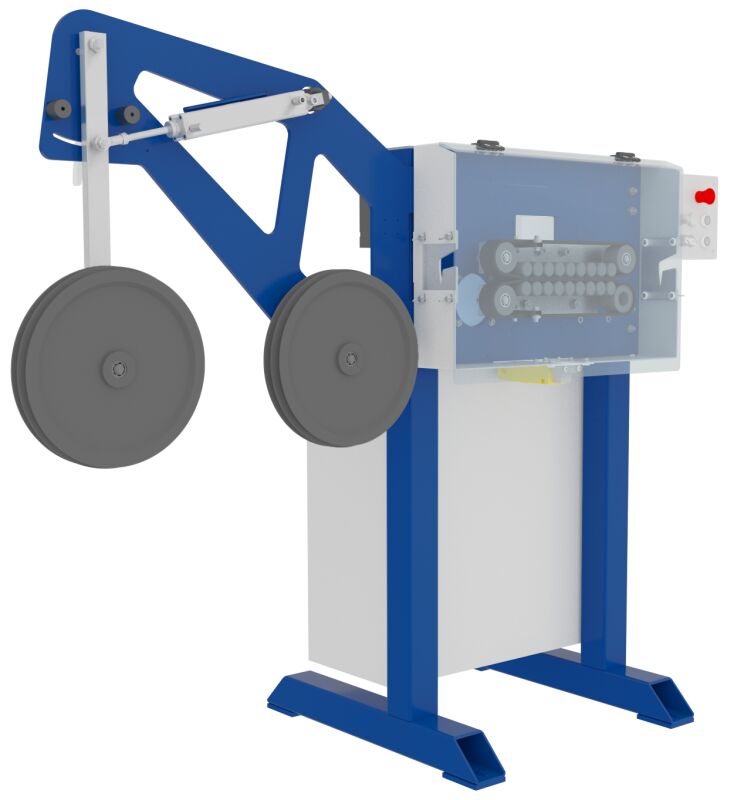

Our Caterpillar BCA 6 is normally used as an exit caterpillar on secondary coating lines, but it can also be used for other purposes.
Buffered fibre is guided between two rubber belts pressed against the fibre by independent rollers. The gripping pressure is pneumatically adjustable and the belt tension can be set with an adjustment screw.| Cable diameter, max. | 10 mm |
| Pulling force, max. | 10N |
| Line speed, max. | 500 m/min |
| Gripping length | 260 mm |
| Dimensions L x W x H | 975 x 720 x 1440 mm |
Exact values depend on the assembly.
