Stable line speed, high pulling force

Our belt caterpillars ensure the stability of line speed and are highly reliable in long runs as well as with high pulling forces. The stable line speed minimizes cable diameter variations.


Upgrading?

Show Hide

Caterpillar & Capstan Drive & Motor Upgrade

Your caterpillar or capstan may be stopped because of an obsolete drive or motor. Don't keep your customers waiting and let your reputation suffer. Have your process requirements changed; do you need more speed or more pulling force from the equipment?

Description

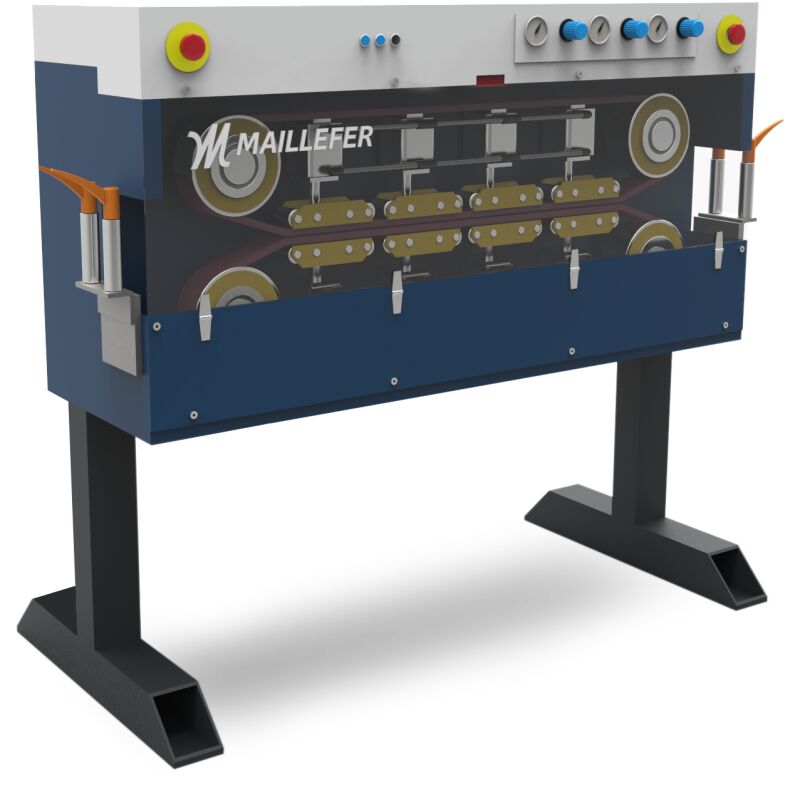

Belt Caterpillar BCA 9 is true workhorse of the cable industry. It is used in various insulation and sheathing applications, from building wire to optical fiber cables.

It has a robust steel frame. The gripping pressure and the belt tension are pneumatically adjustable. Each belt is driven through a gear transmission by an AC motor.

Technical characteristics

Cable diameter, max. 40 mm
Cable diameter, min. 3 mm

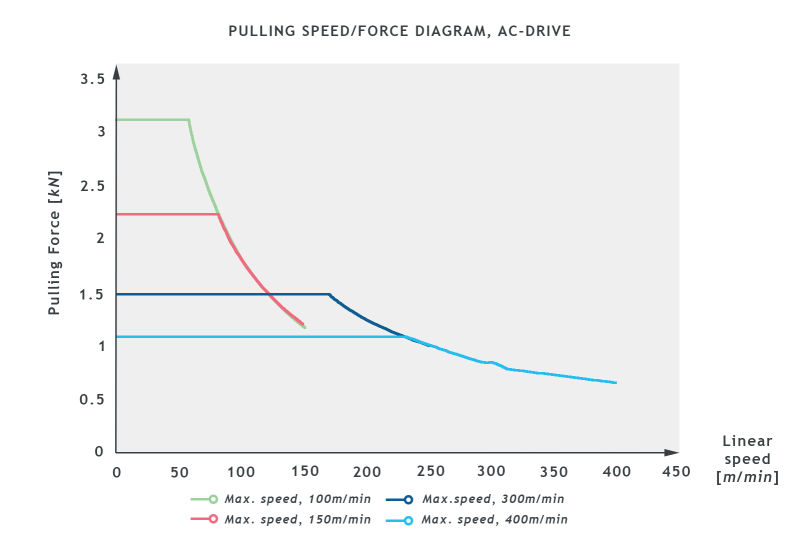

Pulling force, max. 3 kN
Line speed, max. 400 m/min
Gripping length 900 mm
Pressing force at 5 bar 4 kN
Dimensions L x W x H 1806 x 800 x 1445 mm

Exact values depend on the assembly.

Options

  • Air conditioning
