High Stability Capstan HSC 2000 C

Nearest Maillefer contacts for USA

KN Manufacturing Solutions LLC

Fiber Optic

5464 Woodrun Ct
GA 30517 Braselton

Tel: +1 678 828 9868

Cell: +1 404 202 9655

com;ol.;nms;n/k;ine;iem;i.n;kar

Maillefer North America

Pipe & Tube

Phipps Bend Industrial Park<br /> 402 Phipps Bend Road
TN 37873 Surgoinsville

Tel: +1 423 817 2440

Fax: +1 423 212 0131

om;a.c;rus;efe;ill;/ma;jon

Maillefer North America

Wire & Cable

#1 Extrusion Drive
CT 06379 Pawcatuck,

Tel: +1 920-215-6628

om;d.c;dar;tan;s-s;avi;w/d;cho;jza

Precise metering, high stability

The gear box, free from backlash, guarantees extremely stable and precise running.


Upgrading?

Show Hide

Caterpillar & Capstan Drive & Motor Upgrade

Your caterpillar or capstan may be stopped because of an obsolete drive or motor. Don't keep your customers waiting and let your reputation suffer. Have your process requirements changed; do you need more speed or more pulling force from the equipment?

Description

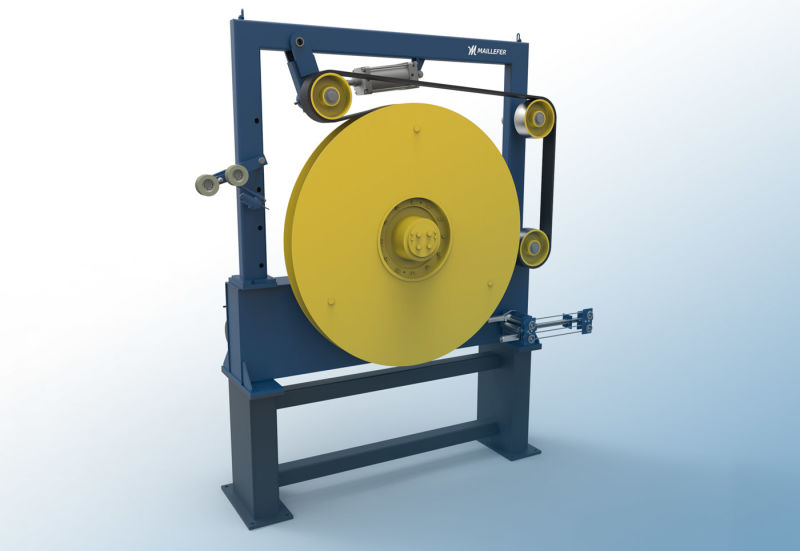

The capstan is designed to serve as a metering unit in vulcanizing lines to ensure reliable operation in long runs. The conductor is guided between a rubber coated driven pulley and a pneumatically tensioned rubber belt. This ensures that the taped delicate conductors are not damaged.

Technical characteristics

Pulley diameter, max. 2000 mm
Conductor diameter, max. 40 mm
Tractive force, max. 20 kN
Line speed, max. 50 m/min
Dimensions L x W x H 3821 x 1959 x 2837 mm

Exact values depend on the assembly.

Options

  • Air compressor
  • Air conditioning
