Precise metering, high stability

The gear box, free from backlash, guarantees extremely stable and precise running.


Upgrading?

Show Hide

Caterpillar & Capstan Drive & Motor Upgrade

Your caterpillar or capstan may be stopped because of an obsolete drive or motor. Don't keep your customers waiting and let your reputation suffer. Have your process requirements changed; do you need more speed or more pulling force from the equipment?

Description

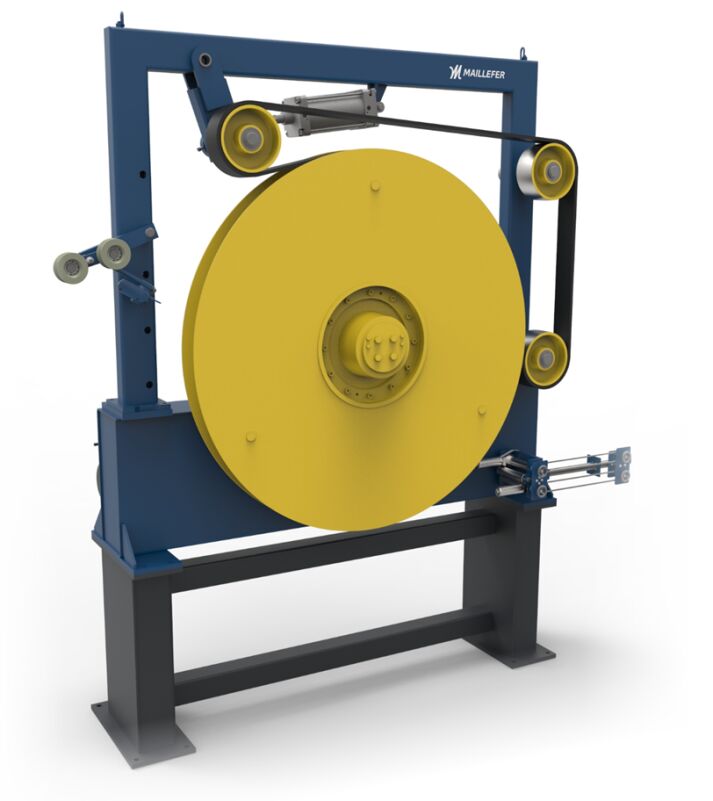

The capstan is designed to serve as a metering unit in vulcanizing lines to ensure reliable operation in long runs. The conductor is guided between a rubber coated driven pulley and a pneumatically tensioned rubber belt. This ensures that the taped delicate conductors are not damaged.

Technical characteristics

Pulley diameter, max. 3500 mm
Line product diameter, max. 150 mm
Tractive force, max. 50 kN
Line speed, max. 50 m/min
Dimensions L x W x H 5401 x 2222 x 4160 mm

Exact values depend on the assembly.

Options

  • Air compressor
  • Air conditioning
  • Cable clamp
