Flexible, well controlled

The flexible Nitrogen Circulation System NCS allows you to optimize the process for a wide range of cables. During a ramp down, the tube/cable cooling by gas is fast and well controlled, generating less stop scrap.


Upgrading?

Show Hide

Nitrogen Blower Upgrade

Want to save your maintenance and nitrogen consumption costs due to the leakage in your nitrogen blower which requires line stop and sealing replacement?

Description

The various cooling circulations are a shutdown cooling loop, and short and long gas cooling loops. In addition, a pre-cooling and separator gas circulation can be added to the system.

The nitrogen circulation unit is equipped with 3 by-product traps with the timer control valve, so that by-product can be collected efficiently from the circulating gas.

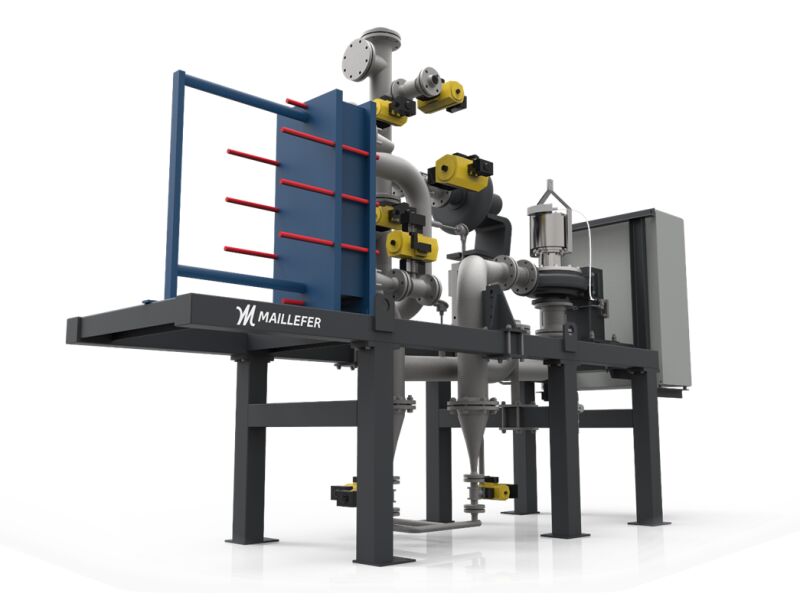

The unit consists of a gas circulation blower, a heat exchanger, three by-product outlets, a ventilation blower and all necessary valves and instruments. All these components have been installed on the same frame, which forms one complete unit.

It is ready-fitted and completely tested.

Technical characteristics

Cooling capacity 33 kW
Weight approx. 1700 kg
Dimensions L x W x H 4010 x 1200 x 2944 mm
Nitrogen flow capacity 300 mᶟ/h at 10 bar (q)

Exact values depend on the assembly.

Options

  • Shut down cooling piping
  • Gas cooling piping
  • Precooling circulation piping
  • NCS interface box for S7 logic
